Used for first aid, is a unique design. It can easily adjust to various positions for emergency treatment under any complicated situations, especially compatible with ambulance environment.
The stretcher can be adjusted to 6 levels and fold back and forth according to practical needs.
When bent forward, the back of the stretcher is supported by fixed pneumatic springs with strapless controlling up to 60 degrees angle. Equipped with front and back fixation support design, the stretcher can be locked in place into the ambulance at a desired position.

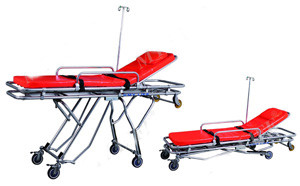

Product Code: C1A Multifunctional
Product size 1980x540x930max(mm) 1980x540x320min(mm)
Net weight 35kg
Gross weight 40kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)

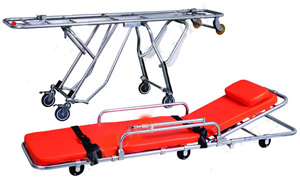

Product Code: C1B The about part can remove
Product size 1980x540x930max(mm) 1980x540x320min(mm)
Net weight 38kg
Gross weight 45kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)

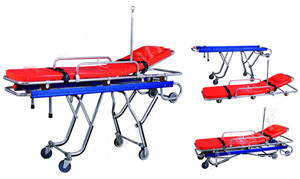

Product Code: C1C The about part can remove
Product size 1980x540x900max(mm) 1980x540x320min(mm)
Net weight 39kg
Gross weight 46kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)

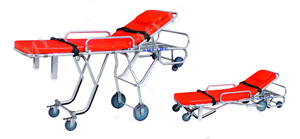

Product Code: C1D Single layer
Product size 1980x540x930max(mm) 1980x540x300min(mm)
Net weight 36kg
Gross weight 40kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)

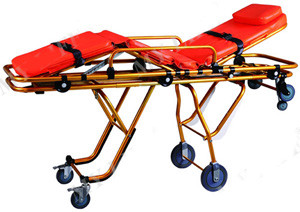

Product Code: C1E The about part can remove and the leg part can become “Z”position
Product size 1980x540x900max(mm) 1980x540x320min(mm)
Net weight 39kg
Gross weight 48kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)

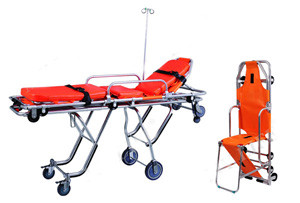

Product Code: C1F About part can become wheelchair
Product size 1970x540x860max(mm) 1970x540x310min(mm)
Net weight 39kg
Gross weight 48kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)

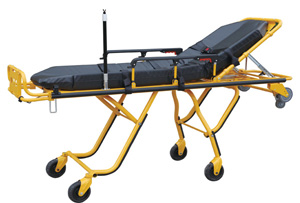

Product Code:C1G Full-automatic Stretcher With Varied Positions
Product size 1980x540x930max(mm) 1980x540x300min(mm)
Net weight 36kg
Gross weight 40kg
Loading bearing ≤159kg
Dimension of the packing box 2000x600x350(mm)
