Product
Code:
23DI
ELECTRICAL SUCTION DEVICE (MOBILE SETUP)
23DI electrical suction device is a new style suction device
for medical use. It can meet most of the negative pressure
requirements in operating rooms, wards and other departments in
hospitals. It is used for taking out pus, blood, sputum and
other thick liquid in human body. The machine adopts oil-free
lubrication vacuum pump avoiding the pollution of oil mist, and
the pump requires no daily maintenance and servicing. The liquid
vessel placed directly on the mobile setup makes it easy to
observe the liquid level in the vessel. Overflow protection
device can prevent the liquid from flowing into the pump.
Hand-operated switch and footstep-operated switch are connected
in parallel for option. The complete machine works reliably,
produces low level of noise. It is long in service life and
reliable and safe in use.
Technical specifications:
Negative pressure value: ≥0.090Mpa
Air pumping efficiency: ≥25L/min
Liquid vessel: 2500ml×2
Adjustment range of negative pressure: -0.013~-0.090Mpa
Noise level: ≤55dB
Input power: 400VA
Mains: AC 220V±10%50Hz
Working mode: Intermittent loading, continuous operation |
 |

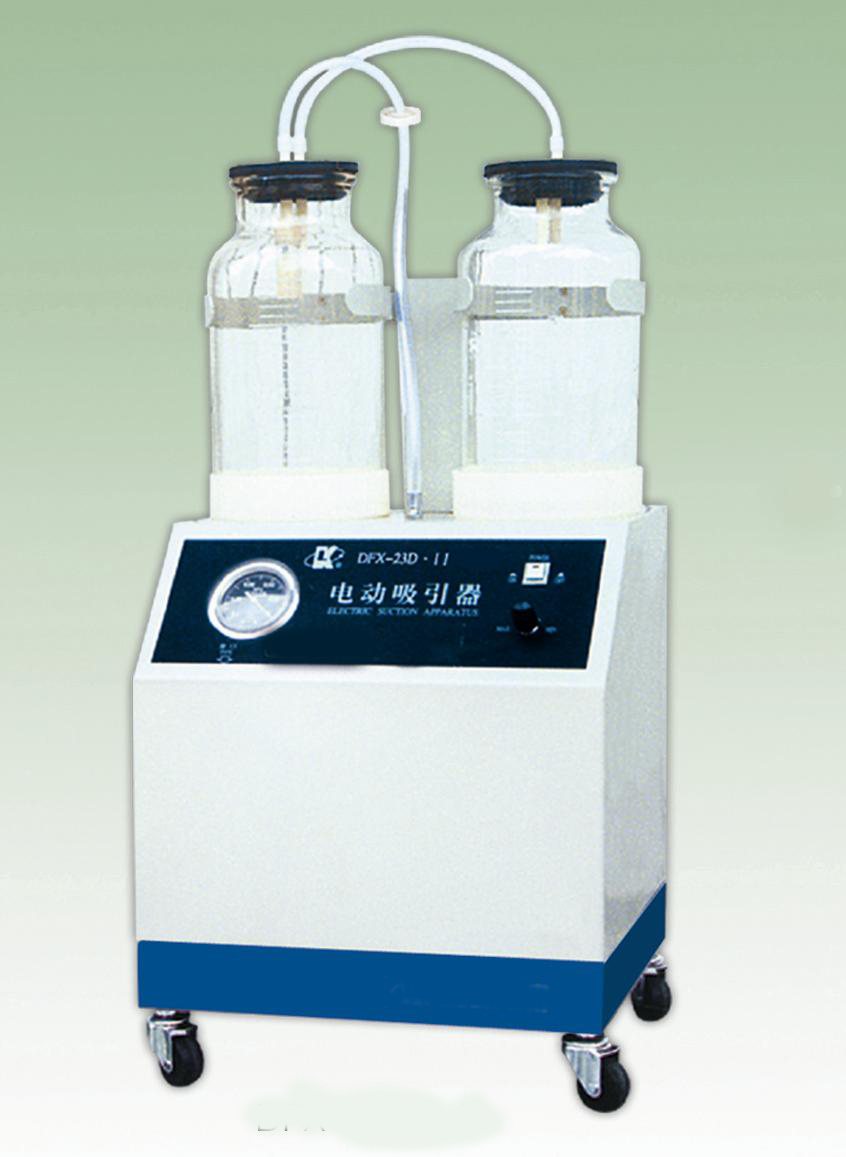

Product
Code:
23DII
ELECTRICAL SUCTION
APPARATUS
23DII electrical suction device is a new style mobile suction
unit for medical use. It is fit for suctioning pus, blood,
sputum and other thick liquid in human body. It adopts double
piston oil-free lubricating vacuum pump, avoiding the pollution
of oil mist. The pump requires no daily maintenance and
servicing. The overflow protection device in the machine may
prevent liquid from flowing into the pump. Hand-operated switch
and footstep-operated switch are connected in parallel for
option. The complete machine works stably and produces a low
level of noise. It can be easily operated and is reliable and
safe in use.
Negative pressure value: ≥0.090Mpa
Air pumping efficiency: ≥25L/min
Liquid vessel: 2500ml×2
Adjustment range of negative pressure: -0.013~-0.090Mpa
Noise level: ≤55dB
Input power: 400VA
Mains: AC 220V±10%50Hz
Working mode: Intermittent loading, continuous operation |
 |

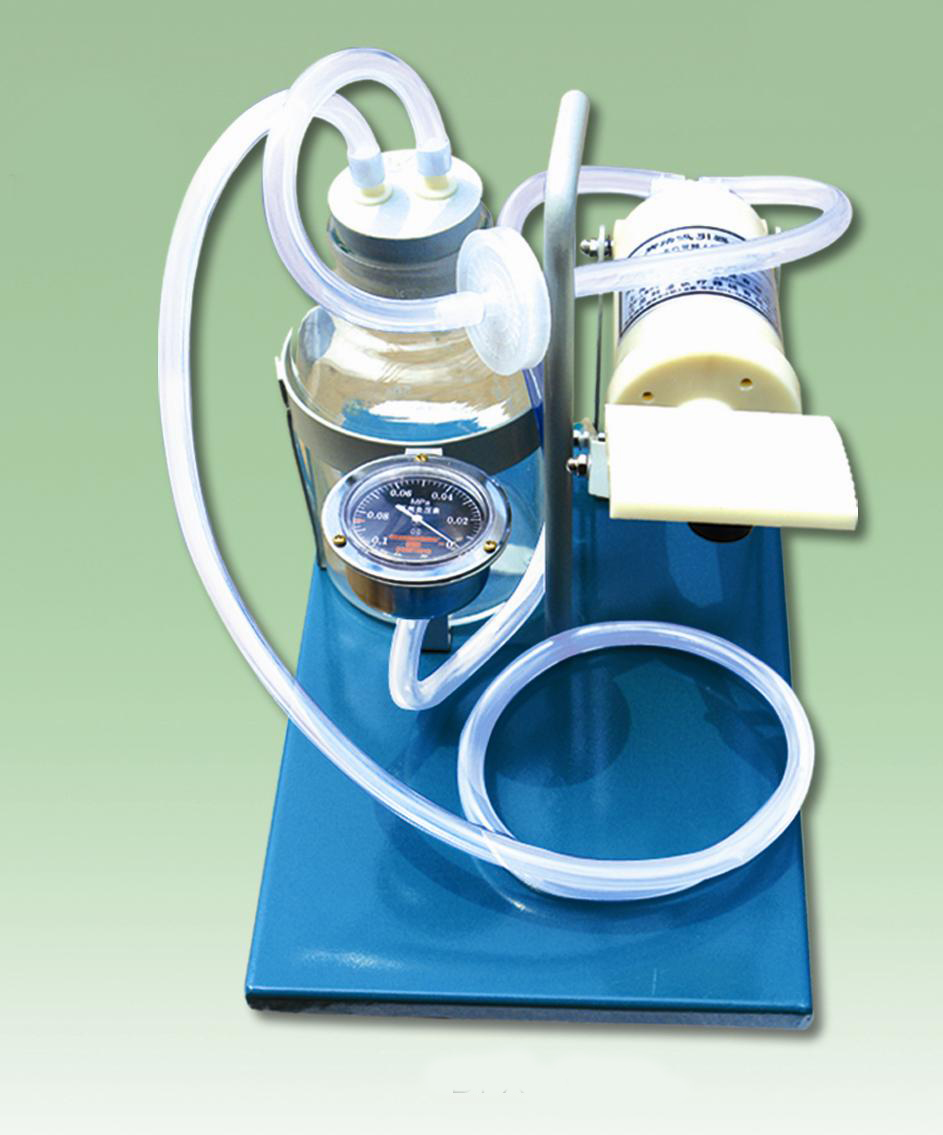

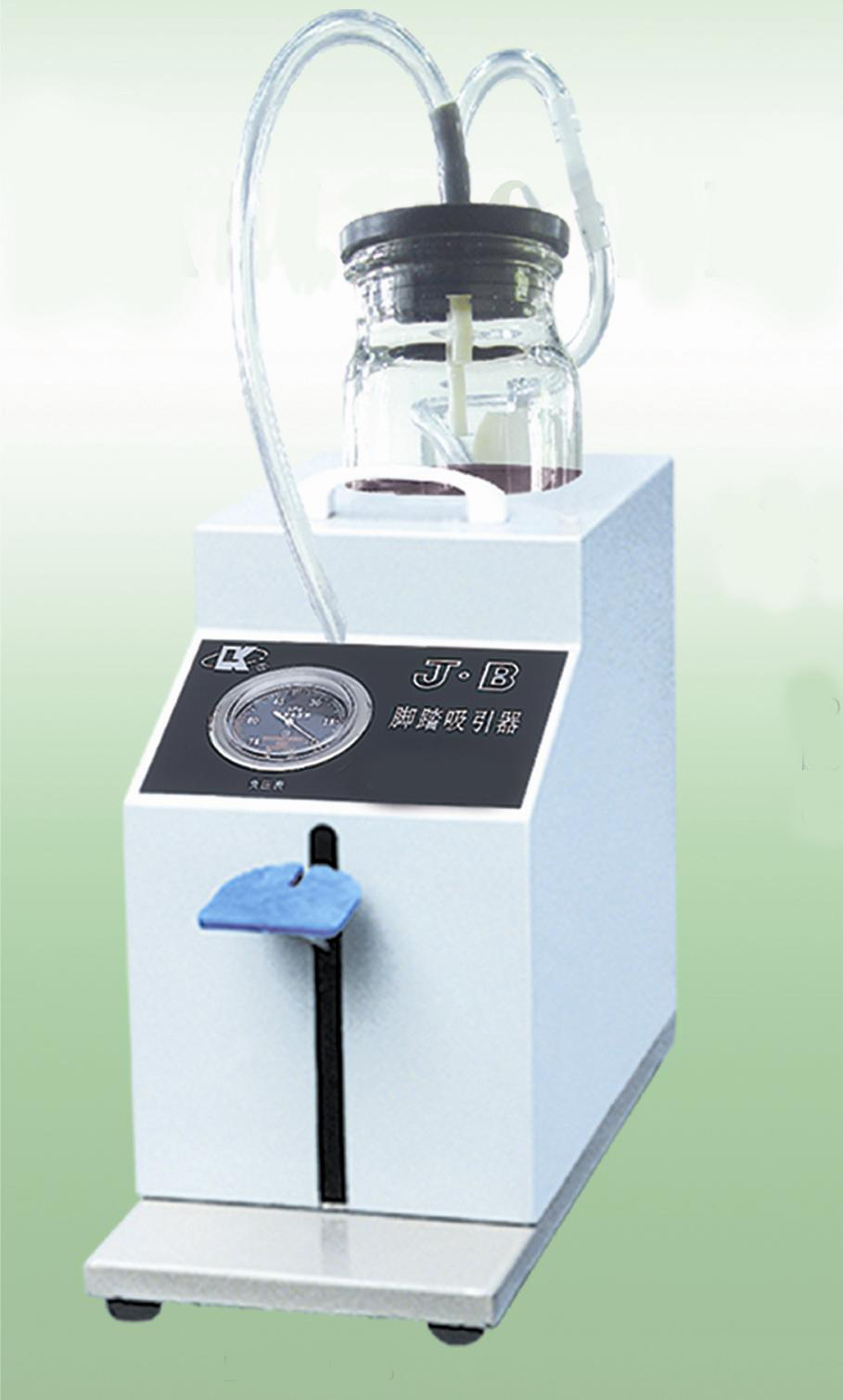

Product Code:
J·A & JB
feed-controlled
suction unit are applied in induced abortion (within 12 weeks pregnency), and in areas where suction of other purposes are
required.
Main Technical Data:
Negative pressure value:≤-0.07MPa
Bottle capacity:1000ml
Maximum negative Pressure:≥10L/min
Dimensions:(400×225×460)mm3 |
 |
|
