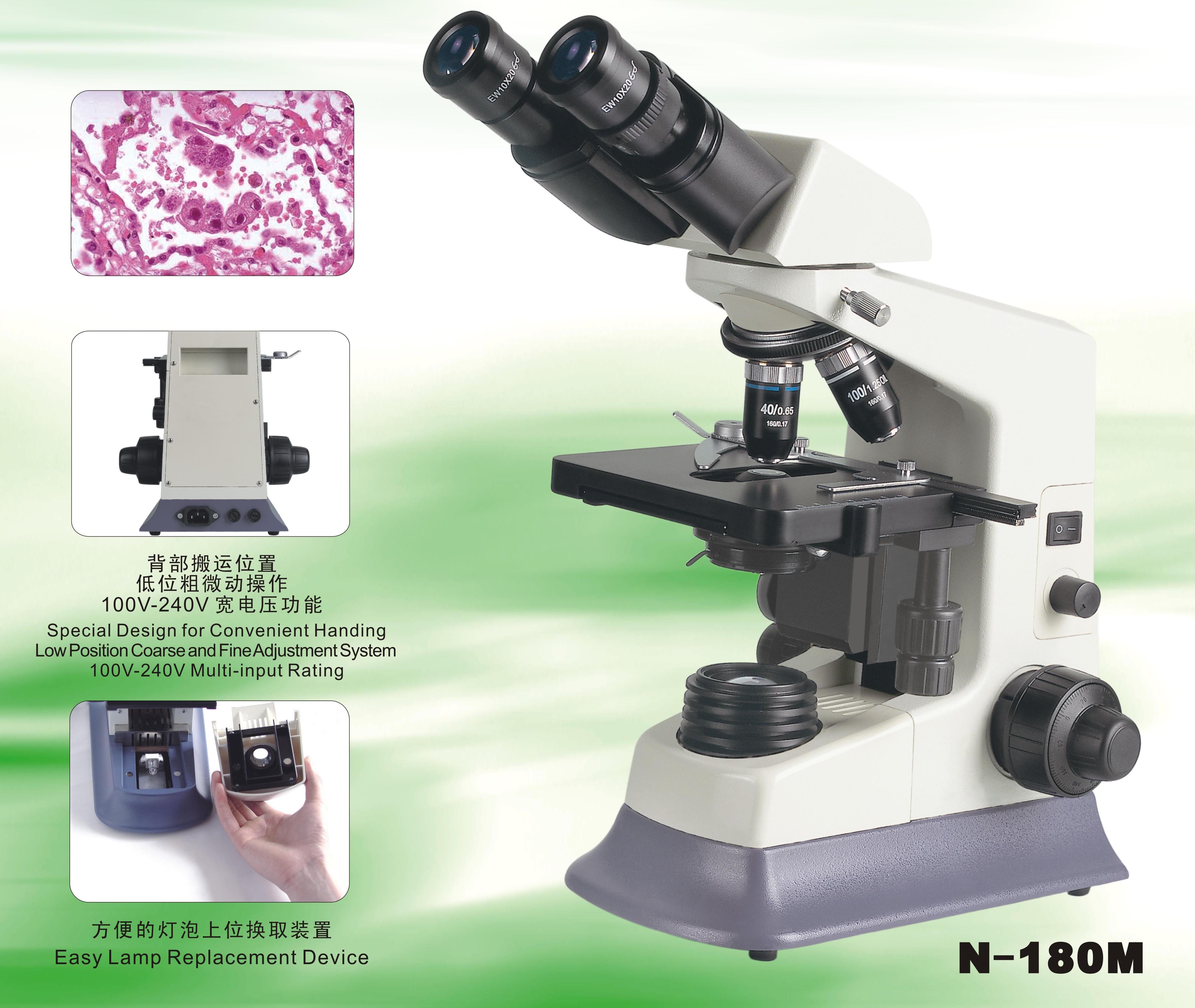

N-180M
Digital Microscope |
 |
N-510 |
 |
NSZ-606 |
 |
DN-200M VDN-200M
Digital Microscope |
 |
XSZ-107T |
 |
XSZ-N204 XSZ-N304 |
 |
Slit Lamp Microscope
Slit lamp microscope is an
ophthalmologic optical instrument used to check preocular and
intraocular based on the principle of optical magnification.
Making use of the tidy optical slice projected from the slit
lamp, the instrument can be used to make accurate examination on
the pathological changes, such as cornea, eyelid, front
chambers, sclera, iris, crystalline lens and retina. It finds
wide applications when fitted with other accessories.
|
Item |
LDX20 |
LDX20A |
|
Eyepiece |
12.5X |
20X |
10X |
|
Value on knob |
25X |
16X |
10X |
40X |
25X |
16X |
2.5X |
1.5X |
1X |
0.66X |
0.4X |
|
Total
magnification |
25X |
16X |
10X |
40X |
25X |
16X |
31X |
19X |
12.5X |
8X |
5X |
|
Linear field
of view(mm) |
9 |
14.4 |
23.2 |
6.1 |
9.7 |
15.6 |
4 |
6.67 |
10.01 |
16.7 |
25.03 |
|
Exit pupil
diameter(mm) |
1.5 |
2.7 |
2.4 |
0.94 |
1.7 |
1.5 |
1.2 |
2.5 |
2.2 |
1.8 |
1.4 |
|
Exit pupil
distance(mm) |
21 |
12 |
27 |
|
Resolution(LP/mm) |
200 |
130 |
200 |
130 |
200 |
130 |

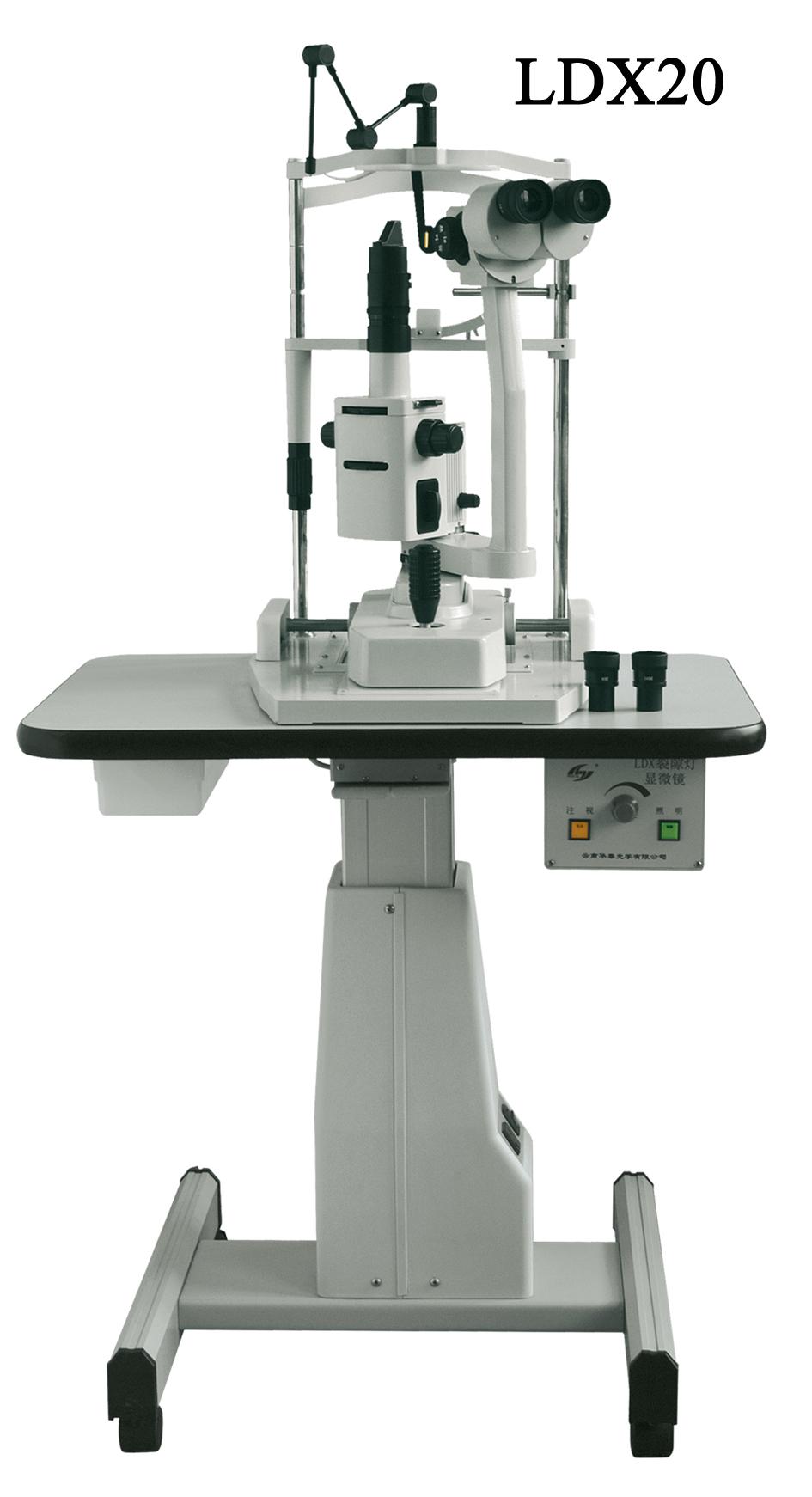

LDX20 Slit Lamp Microscope
LDX20 Slit Lamp Microscope adopts low-positioned light source
for the illumination of microscope. It’s featured for compact
structure and easy operation. The microscope adopts infinite
microscopic principle (i.e. the left and right optical paths are
parallel), which provides the possibility of extending the
function of the instrument.
Main Specification:
1. Eyepiece: 12.5X & 20X. Interpupillary distance adjusting
range: 55 – 75 mm. Eyepiece diopter: ±5D.
2. Working Distance: 92mm
3. Total magnification: 10X, 16X and 25X (with 12.5X eyepieces);
16X, 25X and 40X (with 20X eyepieces).
4. Light spot diameter: 0.5, 1, 3, 5, 10mm and 14mm.
5. Slit width: Continuously from 0mm to 14mm.
6. Slit rotation: Steplessly from 0°to 360°
7. slit inclination: 0°to 20°.
8. Slit swing: ±6°
9. Filter: Built-in Green and cobalt blue, ND(28%).
10. Sliding plate: Left and right movement: 110mm; back and
forth movement: 100mm; up and down movement: 30mm; horizontal
fine adjustment: 14mm.
11. Illumination: 12V30W halogen bulb.
12. Fixation lamp: The universal light spot consists of LED and
3-step joint.
13. Motorized stand: Table: 640X445mm; up and down movement:
from 630mm to 820mm.
Other Technical Data:
1. Rotation angle of slit lamp: Horizontal 180°(90°for left and
right)
2. Rotation angle of microscope: Horizontal 180°(90°for left and
right)
3. Lift range of chin rest: 50mm |
 |

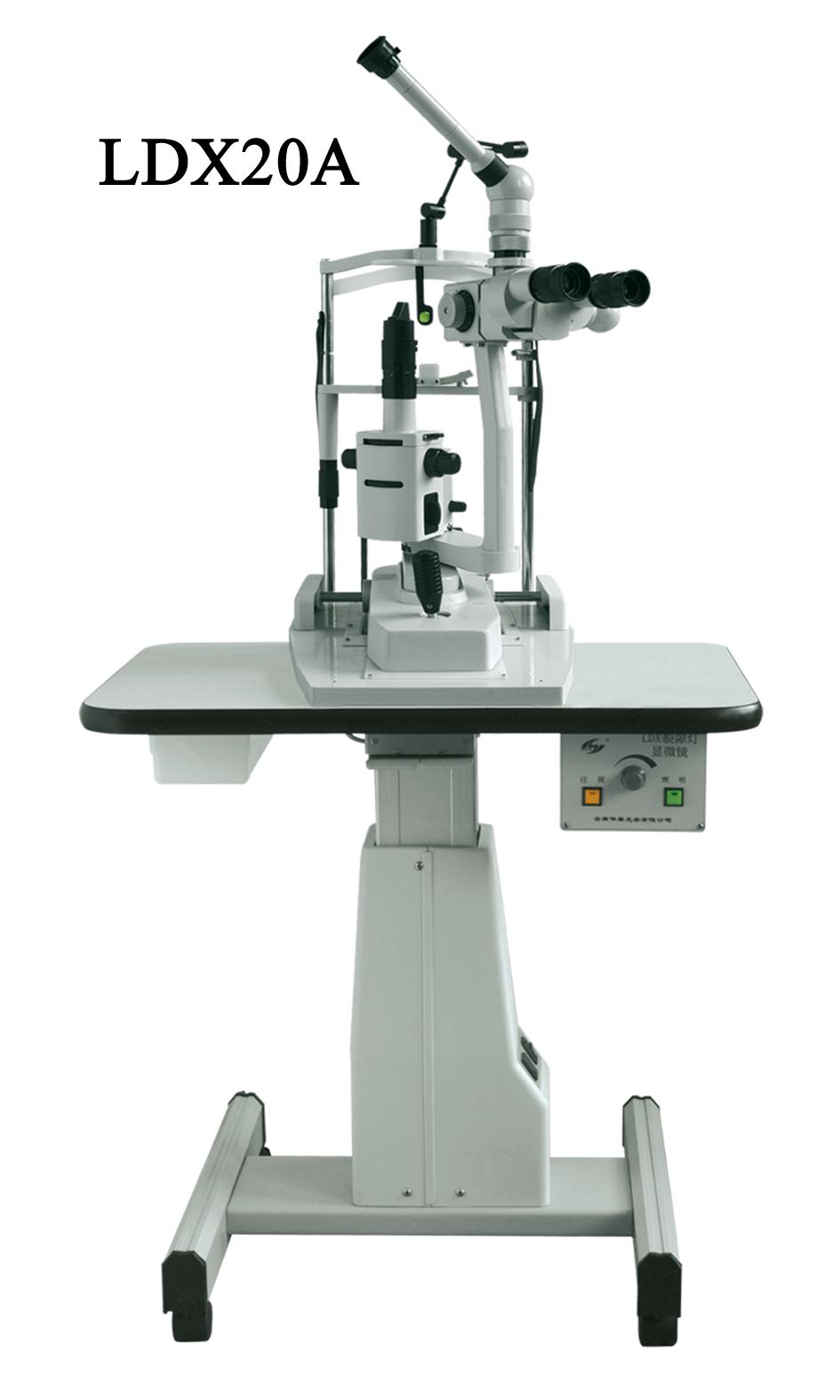

LDX20A slit lamp
microscope is modified on the basis of LDX20. It provides
more steps of magnification change. Beamsplitter, demonstrator
and TV adapter are added between observation unit and
magnification changer, which provides the possibility of taking
video, teaching and demonstration. Thus, the functions of the
slit lamp microscope are extended.
Main Specification:
1. Eyepiece: 10X. Interpupillary distance adjusting range: 55 –
75 mm. Eyepiece diopter: ±5D.
2. Working Distance: 92mm
3. Total magnification: 5X, 8X, 12.5X, 19X, 31X
4. With beamsplliter, demonstrator and TV adapter
5. Light spot diameter: 0.5, 1, 3, 5, 10mm and 14mm
6. Slit width: Continuously from 0mm to 14mm
7. Slit rotation: Steplessly from 0°to 360°
8. slit inclination: 0°to 20°
9. Slit swing: ±6°
10. Filter: Built-in Green and cobalt blue, ND(28%).
11. Sliding plate: Left and right movement: 110mm; back and
forth movement: 100mm; up and down movement: 30mm; horizontal
fine adjustment: 14mm
12. Illumination: 12V30W halogen bulb
13. Fixation lamp: The universal light spot consists of LED and
3-step joint
14. Motorized stand: Table: 640X445mm; up and down movement:
from 630mm to 820mm.
Other Technical Data:
1. Rotation angle of slit lamp: Horizontal 180°(90°for left and
right)
2. Rotation angle of microscope: Horizontal 180°(90°for left and
right)
3. Lift range of chin rest: 50mm |
|
