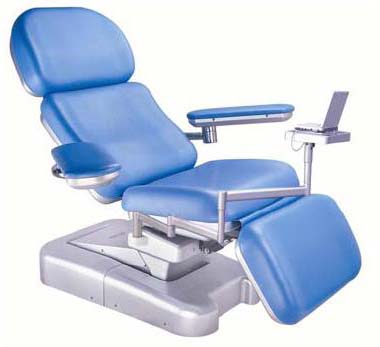

Product Code: XD101 Electric Blood donation chair

Chair dimension:1700mm(curve length) ×560mm
Height:570mm(min.)---830mm(max.)
Head section turn: -15°~25°
Back section lift: 0~80°
Leg section turn: 0~ -90°
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°~10°
Arm board dimension: 450mm×160mm
Trend and reverse trend: 0~12°
Arm board concave radian: R108

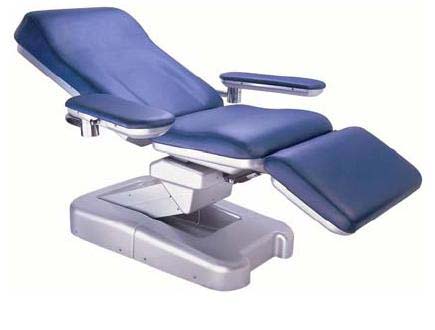

Product Code: XD102 Electric blood donation chair

Chair dimension:1700mm(curve length) ×560mm
Height:510mm(min.)---800mm(max.)
Back section lift: 25°~80°
Trend and reverse trend: 0~12°
Leg section turn: -30°~ -90°
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°~10°
Arm board dimension: 450mm×160mm
Arm board concave radian: R108

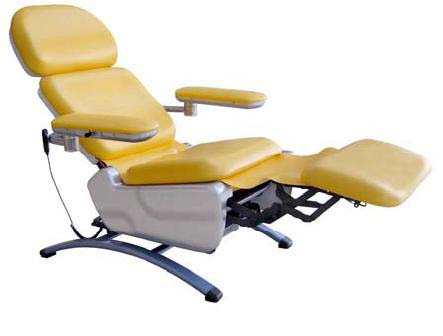

Product Code: XD103 Electric Blood donation chair

Chair dimension:1970mm(curve length) ×560mm
Back section lift: 25°~55°
Head section turn: -15°~25°
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°~10°
Arm board dimension: 450mm×160mm
Leg section turn: -5°~ -90°
Center of gravity move forward at bed position: 190mm
Seat section angle: 10°~-20°
Arm board concave radian: R108

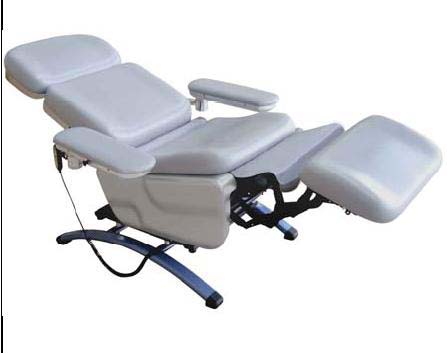

Product Code: XD104 Normal Electric Blood donation chair

Chair dimension:1970mm(curve length) ×560mm
Head section turn: -15°~25°
Back section lift: 25°~55°（Back section can be adjusted to level by manual）
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°~10°
Arm board dimension: 450mm×160mm
Leg section turn: -5°~ -90°
Center of gravity move forward at bed position: 190mm
Arm board concave radian: R108

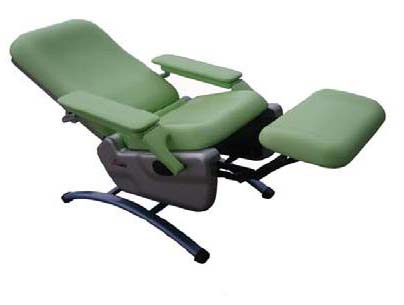

Product Code: XS104 Manual Stretchable blood donation chair

Chair dimension:1770mm(curve length) ×560mm
Back section lift: 30°~60°
Arm board swing out: 0~45°
Arm board declining angle adjustment: 0°~ -8°
Leg section turn: -5°~ -90°
Center of gravity move forward at bed position: 190mm

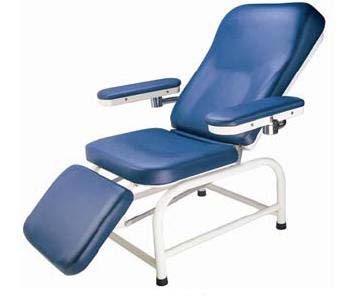

Product Code: XS105 Manual blood donation chair

Chair dimension:1650mm(curve length) ×560mm
Back section lift: 0~70°
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Leg section turn: 0~ 60°（leg section and seat section work as one unite）
Arm board dimension: 450mm×160mm
Arm board concave radian: R108

Product Code: XD107 Electric Blood donation chair

Chair dimension:1700mm(curve length) ×560mm
Height: 570mm(min.)---830mm(max.)
Head section turn: -15°~25°
Back section lift: -5°~70°
Leg section turn: -65°~ 5°
Foot support telescopic: 100mm
Foot support turn: 0~90°
Fixed angle of seat section :5°
Arm board swing out: 0~45°
Arm board height adjustment: 100mm
Arm board slide: 100mm
Arm board declining angle adjustment: -15°~10°
Arm board dimension: 450mm×160mm
Arm board concave radian: R108
