Ultrasound Gel

Product Code:  SYH-Color, Hand-Carried Color Doppler Digital Untrasound System

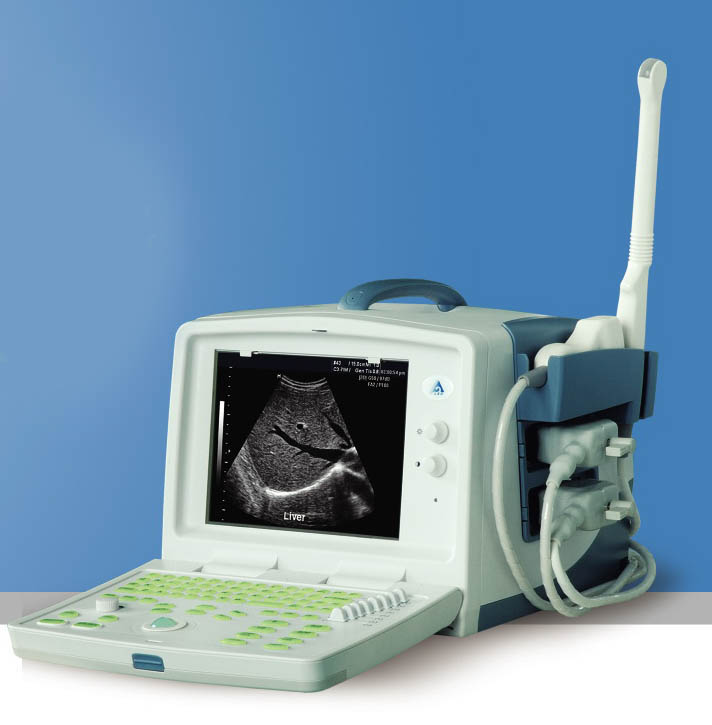

Product Code:   SYH-D1  Ultrasound

Image mode

B, B/B, B/M, M,4B

Scanning mode

Convex and linear array

Multi-frequency probe

2.5~8.5 MHz

Image magnification

ĄÁ1.0, ĄÁ1.2, ĄÁ1.5, ĄÁ2.0

Electronic focus

Acoustic lens focus, single focus and multiple focus

Max display depth

220mm

Depth enhancement/pan function

Yes

Local zoom

Yes

Frame correlation function

Yes

Adjustment total gain and dynamic range

Yes

Gray Scale

256

Display

10.4 inch SVGA high resolution non-interlaced monitor

Gains

0~99 dB digital adjustable

Probe connectors

2 (standard)

Storage

8 images permanent image storage

USB port

for image transferring to PC

Scanning frequency

2.5~8.5 MHz (depends on probes)

Image reverse

Left/right, up/down, positive/negative

Comment

Time, date, week, doctor name, patient ID, age, sex, transducer type, transducer frequency, gray scale, focus, average value

Body marks

35

Power supply

AC 110V, 60Hz; AC220,50 Hz

Power consumption

ĄÜ100VA

Dimensions

490x380x420mm (LxHxM)

Net weight

approx. 9.5k, g

Product Code:  SYH-D2  Ultrasound

Advantages

l      Embedded computer platform is adopted in the ultrasonic master system

l      THI

l      DFC Dynamic frequency scanning

l      Histogram, Sectionl drawing, Puncture guide

l      Save hundreds of thousands of images and cine loop permanently

l      Dynamic real-time PIP local zoom functions

l      Double connectors

l      Double USB ports

l      Multiple kinds of OB. measurement reports, fetus physiological grades and reports and

fetus growth curve

l      Auto-create report systems of Gyn., small organs, cardiac, urology and other      sections

l      Compatible of jet printer, laser printer, video printer and video recorder

Product Code:  SYH-E1Ł¨FULL DIGITALŁŠ   Ultrasound

Applicable fields

 Suitable for the diagnosis of Abdomen, Heart, Gynecology, Obstetrics, Thyroid Gland, Small Parts and so on.

Widely used for clinical examination and diagnosis. They are ideal equipments to meet the needs of various kinds of hospitals and clinics.

Dispaly
15 inches high-resolution LCD
Scanning Mode
Electronic convex array, Electronic linear array
Display Mode
B, B/B, B/M and M
Magnification
x0.8, x1.0, x1.2, x1.3, x1.5, x1.6, x1.8, x2.0
Gray Scale
256
Adjustment
A, B, C, D, E, F, G,H
Resolution
HorizontalĄÜ2mm, Vertical ĄÜ1mm
Geometrical Precision
ĄÜ5%
Blind Area
ĄÜ3mm
TGC
8-section TGC adjustment
Pseudo Colors
Yes
Display Depth
240mm and depth could be increased
Image Polarity
Left/right, positive/negative and up/down
Cineloop
Successive 256 frames
Output Interface
Three output interfaces: 1 VGA and 2 PAL video signal output
Power Supply Range
AC 110V60Hz, 220V50Hz

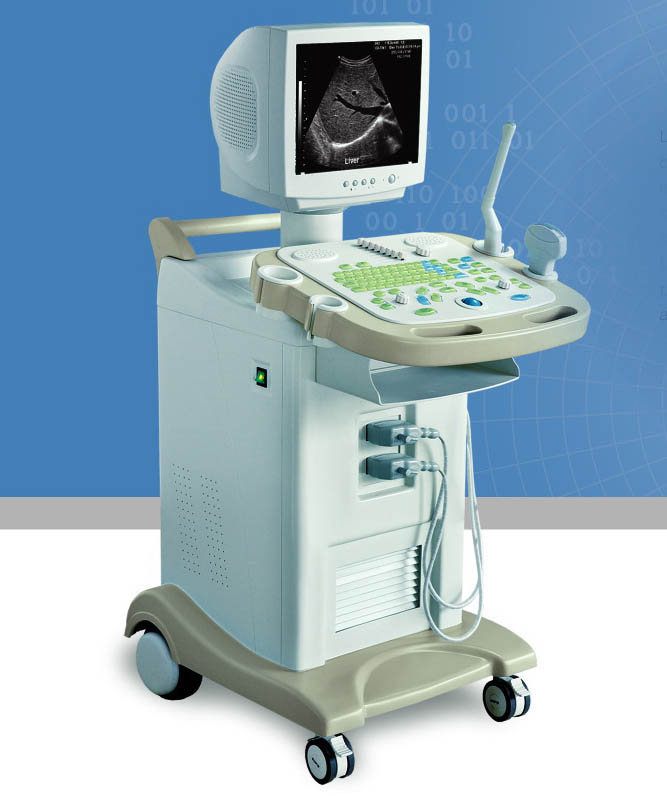

Product Code: SYH-G1, Ultrasonic Diagnostic Equipment

Feature:

14 inch SVGA high resolution non-interlaced monitor

Multi-frequency probes

Real-time zooming

192-frame Cineloop

8 images permanent storage

USB port

Multi-segment TGC adjustment

Specification:

ĄĄ

Image mode

B, B/B, 4B, B/M, M

Scanning mode

Convex and linear array

Multi-frequency probe

2.5~8.5 MHz

Image magnification

ĄÁ0.8, ĄÁ0.9, ĄÁ1.0, ĄÁ1.1,ĄÁ1.2, ĄÁ1.3, ĄÁ1.4 ĄÁ1.5

Electronic focus

Acoustic lens focus, single focus and multiple focus

Max display depth

220mm

ĄĄ

Depth enhancement

Yes

Local zoom

Yes

Frame correlation function

Yes

Adjustment total gain

Yes

dynamic range

Yes

Gray Scale

256

Display

14 inch SVGA high resolution non-interlaced monitor

Gain Control

8-segment STC segmentation control,  full gain control

Gains

0~99 dB digital adjustable

Probe connectors

2 (standard)

Storage

8 images permanent image storage

USB port

for image transferring to PC

Scanning frequency

2.5~8.5 MHz (depends on probes)

Image reverse

Left/right, up/down, positive/negative

Comment

Time, date, week, patient ID, age, sex, transducer type, transducer frequency, gray scale, focus, Hospital, Name, display mode, body mark

Body marks

35

Power supply

AC 110V 60HZ, AC 220V 50Hz

ĄĄ

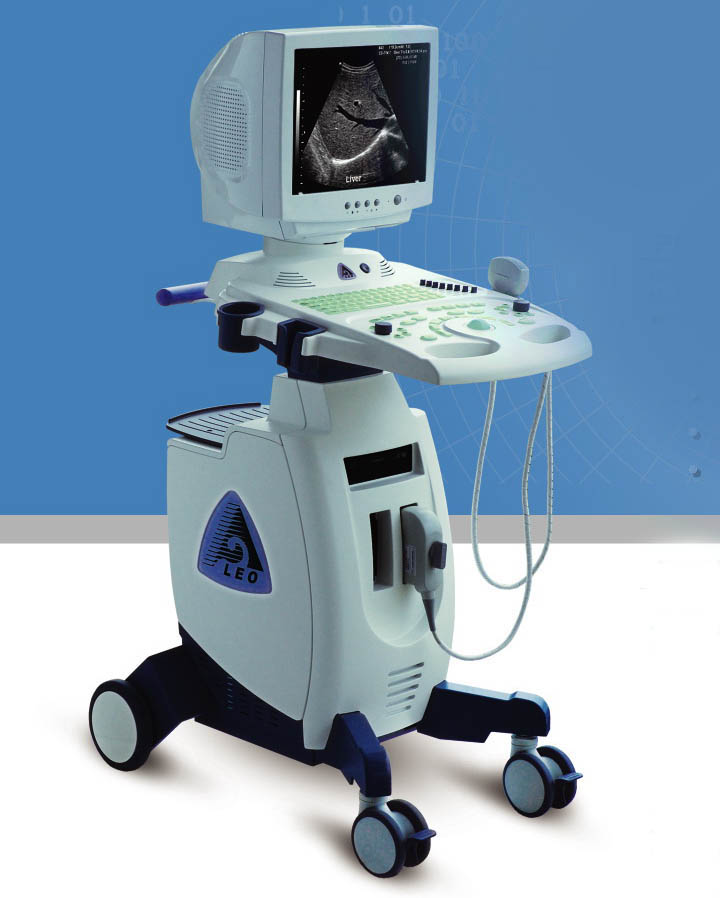

Product Code:  SYH-H2
Leading Digital Technology
DBF:Digital Beam Former
RDF:Real-time Dynamic Filtering
DFS:Dynamic Frequency Scanning
RDA:Real-time Dynamic Aperture
ĄĄ
Features:
Trolley design
14 inch high-resolution monitor
8 TGC controls
High-quality images
Broadband multi-frequency probes
Cineloop
Permanent image storage
USB port
Technical Specification:
Display
14 inch high-resolution monitor
Scanning mode
Electronic linear array, electronic convex linear
Display mode
B, B/B, B/M, M, 4B
Magnification
ĄÁ1.0, ĄÁ1.2, ĄÁ1.5, ĄÁ2.0
Gray Scale
256 level
Displaying depth
240mm, and depth could be increased and stepless magnified
Resolution
Horizontal: ĄÜ2mm                                                                Vertical: ĄÜ1mm
Geometrical precision
ĄÜ5%
Blind area
ĄÜ3mm
TGC
8-section TGC adjust
Image Polarity
left/right turn, positive /negative turn and up / down turn
Cineloop
successive 256 frames
Output Interface
two output interfaces, VGA and PAL video signal output
Power Supply Range
AC 110V 60Hz                                                         AC 220V 50Hz
Focusing modes
dynamic-emitting focus, dynamic-receiving focus, dynamic aperture, adaptive acoustic lens
Output interface
AV, S-video, VGA
USB connector
Yes
Product Code: SYH-D1V, Veterinary
applicable to abdominal, seminal and small organs examination for Bovine, Equine, Ovine, Canine and Feline.

ĄĄ

Features:

10.4 inch SVGA high resolution non-interlaced monitor

Multi-frequency probes

Real-time zooming

192-frame Cineloop

8 images permanent image storage

Two probe connectors

VET software

 Specification:

Image Mode

ĄĄ

B, B/B, B/M, M

Scanning Mode

Convex and linear array

Multi-Frequency Probe

2.5~8.5 MHz

Image Magnification

ĄÁ1.0, ĄÁ1.2, ĄÁ1.5, ĄÁ2.0

Electronic Focus

Acoustic lens focus, single focus and multiple focus

Max Display Depth

220mm

ĄĄ

Depth Enhancement/Pan Function

Yes

Local Zoom

Yes

Frame Correlation Function

Yes

Adjustment Total Gain And Dynamic Range

Yes

Gray Scale

192

Display

10.4 inch SVGA high resolution non-interlaced monitor

Probe Connectors

2 (standard)

Scanning Frequency

2.5~8.5 MHz (depends on probes)

Image Reverse

Left/right, up/down, positive/negative

Comment

Time, date, week, doctor name, patient ID, age, sex, transducer type, transducer frequency, gray scale, focus, average value

Body Marks

5

Power Supply

AC 110V,60Hz; AC 220V,50Hz

ĄĄ

Power Consumption

ĄÜ100VA

Dimensions

490x380x420mm (L x H x M)

Net Weight

approx. 9.5kg

Product Code: SYH-907   Ultrasound

Features:
• Full digital beam-forming technology;
• 8-Segment TGC adjustment;
• Display the puncture guide line;
• Automatic report generation(Normal/OB);
• 16 levels scanning depth adjustment;
• USB 2.0 for real-time picture uploading to PC;
• Keyboard with backlight;
• Display date, time, name, sex, age, doctor and hospital name annotation;
• GAMA calibration, statistic histogram and edge gain image processing.

Product Code:  SYH-908   Ultrasound

Features:
• Full digital beam-forming technology;
• 8-Segment TGC adjustment;
• Display the puncture guide line;
• Automatic report generation(Normal/OB);
• 16 levels scanning depth adjustment;
• USB 2.0 for real-time picture uploading to PC;
• Keyboard with backlight;
• Display date, time, name, sex, age, doctor and hospital name annotation;
• GAMA calibration, statistic histogram and edge gain image processing.

Product Code:  SYH-910   Ultrasound

Features:
• Full digital beam-forming technology;
• 8-Segment TGC adjustment;
• Gama calibration, histogram;
• Automatic report generation(Normal/OB);
• Scanning angle adjustment;
• 16 levels scanning depth adjustment;
• USB 2.0 for real-time picture uploading to PC;
• Biopsy guide available;
• Keyboard with backlight;
• Multi-frequency transducers for wide application.

Product Code: SYH-100   Ultrasound

Features:
• 10 inches high resolution monitor;
• Full digital beam-former technology ;
• THI-- Tissue Harmonic Imaging technique;
• 8-Segment TGC adjustment;
• USB 2.0 for Patient information storage;
• Image processing technology.

Product Code:  SYH-200/300   Ultrasound

Features:
• Originate from the latest image processing techniques;
• Broadband and multi-frequency transducers;
• Abudant software packages of Abdomen, Obstetric, Gynecology, Cardiology, Urology, Endocavity, Vascular, Prostate and Small Parts;
• Built-in Patient information management system;
• More than 5000 frames permanent storage;
• Embedded 3D software as option.

Product Code: SYH-210/220   Ultrasound

Features:
• 14 inches high resolution monitor;
• Originate from the latest image processing techniquesŁť
• Broadband and multi-frequency transducersŁť
• Abudant software packages of Abdomen, Obstetric, Gynecology, Cardiology, Urology, Endocavity, Vascular, Prostate and Small PartsŁť
• Built-in patient information management systemŁť
• More than 50000 frames permanent storageŁť
• Embedded 3D software as option;
• Dicom 3.0 is available;
• 14 inches TFT color monitor as option.

Powerful AnalysisŁş
• Automatic measurement software for obstetrics, gynecology, organ, heart,
urology etc. Department.
• Measurement and calculation: distance, ellipse measure circumference and
area, trace measure circumference and area, ellipse measure surface area and
volume; 4 measuring results; Ratio measurement, line narrow/width ratio, area
narrow/width ratio, angle measurement, automatic calculation.
• Automatic report producing system.
