Vertical Type Autoclave

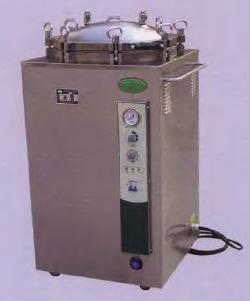

Product Code: B100L/VERTICAL PRESSURE STEAM STERILIZER
Indicator light indicates working state
Over-temperature & over-pressure auto-protection device
Double scale indication pressure gauge
Safe protection of water lacking
With the below exhaust structure, which is convenient to exhaust the cold air
Automatically shut off with beep reminding after sterilization
Whole body inner and outer made by stainless steel
Easy to operate, safe and reliable
With two stainless steel sterilizing baskets

Capacity: 120L(D.480mmx660mm)
Working pressure: 0.22MPa
Working temperature: 134℃
Max. safety pressure: 0.23MPa
Timer scope : 0-60 min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/6Kw



Product Code: B150L/VERTICAL PRESSURE STEAM STERILIZER

Capacity: 150L(D.510mmx740mm)

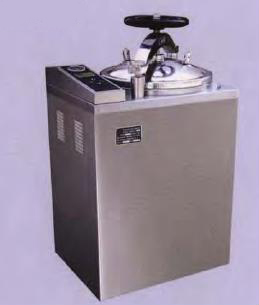

Product Code: B35II/Vertical Pressure Steam Sterilizer (Fully automatic microcomputer)

Whole body inner and outer made by stainless steel

Hand wheel type of quick-open door structure

Door safety lock system

Automatically controlled by computer

Digital display of working status, touch type key

Over temperature ﹠over pressure auto-protection

With inner cycle system of water and steam, no need of outer water source, have a dry clean environment

Safe protection of water lacking

Possible to install drying system according request

Automatically shut off with beep reminding after sterilization

With two stainless steel sterilizing baskets

Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Max. safety pressure: 0.23MPa
 Timer : 0-99 min or 0-99hour59min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/2.5Kw



Product Code: B50II/Vertical Pressure Steam Sterilizer (Fully automatic microcomputer)

Capacity: 50L(D.340mmx550mm)

Power: 220V 50Hz/3Kw

Product Code: B75II/Vertical Pressure Steam Sterilizer (Fully automatic microcomputer)

Capacity: 75L(D.400mmx600mm)

Power: 220V 50Hz/4.5Kw

Product Code: B100II/Vertical Pressure Steam Sterilizer (Fully automatic microcomputer)

Capacity: 100L(D.440mmx650mm)
 Working pressure: 0.14MPa
 Working temperature: 126℃
 Max. safety pressure: 0.165MPa
 Timer : 0-99 min or 0-99hour59min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-126℃

Power: 220V 50Hz/4.5Kw





Product Code: B35III/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚



Whole body inner and outer made by stainless steel

Hand wheel type of quick-open door structure

Door safety lock system

Automatically controlled by computer

Digital display of working status, touch type key

Over temperature ﹠over pressure auto-protection

With inner cycle system of water and steam, no need of outer water source, have a dry clean environment

Self-inflating type seal

Safe protection of water lacking


Automatically shut off with beep reminding after sterilization


Easy to operate, safe and reliable


With two stainless steel sterilizing baskets

Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Max. safety pressure: 0.23MPa
 Timer : 0-60 min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/2.5Kw



Product Code: B50III/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚

Capacity: 50L(D.340mmx550mm)

Power: 220V 50Hz/3Kw





Product Code: B75III/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚

Capacity: 75L(D.400mmx600mm)

Power: 220V 50Hz/4.5Kw



Product Code: B100III/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚



Capacity: 100L(D.440mmx650mm)
 Working pressure: 0.14MPa
 Working temperature: 126℃
 Max. safety pressure: 0.165MPa
 Heat average: ≤± 1 ℃

Adjustment of temperature: 105-126℃

Power: 220V 50Hz/4.5Kw

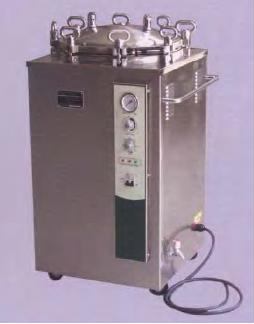

Product Code: B35L/Vertical Pressure Steam Sterilizer

Whole body inner and outer made by stainless steel

Indicator light indicates working state

Over temperature ﹠over pressure auto-protection

Double scale indication pressure gauge

Safe protection of water lacking

Automatically shut off with beep reminding after sterilization

Easy to operate, safe and reliable


With two stainless steel sterilizing baskets



 Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Max. safety pressure: 0.23MPa
 Timer : 0-60 min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/2.5Kw

Product Code: B50L/Vertical Pressure Steam Sterilizer

Capacity: 50L(D.340mmx550mm)

Power: 220V 50Hz/3Kw



Product Code: B75L/Vertical Pressure Steam Sterilizer

Capacity: 75L(D.400mmx600mm)

Power: 220V 50Hz/4.5Kw



Product Code: B100L/Vertical Pressure Steam Sterilizer

Capacity: 100L(D.440mmx650mm)

Power: 220V 50Hz/4.5Kw

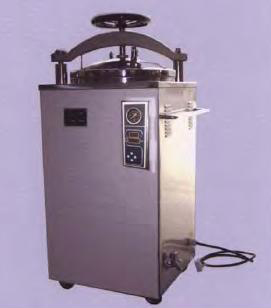

Product Code: B35LI/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚

Whole body inner and outer made by stainless steel

Hand wheel type of quick-open door structure
Pressure safety lock
Indicator light indicates working state
Over temperature & over pressure auto-protection
Double scale indication pressure gauge
Self-inflating type seal
Safe protection of water lacking
Automatically shut off with beep reminding after sterilization
Easy to operate, safe and reliable
With two stainless steel sterilizing baskets

Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Max. safety pressure: 0.23MPa
 Timer : 0-60 min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/2.5Kw



Product Code: B50LI/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚

Capacity: 50L(D.340mmx550mm)

Power: 220V 50Hz/3Kw





Product Code: B75LI/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚

Capacity: 75L(D.400mmx600mm)

Power: 220V 50Hz/4.5Kw



Product Code: B100LI/Vertical Pressure Steam Sterilizer﹙ hand round automatic﹚

Capacity: 100L(D.440mmx650mm)
 Working pressure: 0.14MPa
 Working temperature: 126℃
 Max. safety pressure: 0.165MPa
 Heat average: ≤± 1 ℃

Adjustment of temperature: 105-126℃

Power: 220V 50Hz/4.5Kw







Product Code: B35LI-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Whole body inner and outer made by stainless steel

Hand wheel type of quick-open door structure


Door safety lock system

Digital display of working status, touch type key

Auto-letting off the cool air, and steam discharging automatically sfter sterilization
Over temperature & over pressure auto-protection

Self-inflating type seal
Safe protection of water lacking
Automatically shut off with beep reminding after sterilization

With two stainless steel sterilizing baskets

Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Max. safety pressure: 0.23MPa
 Timer : 0-99 min or0-99hour59min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/2.5Kw





Product Code: B50LI-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Capacity: 50L(D.340mmx550mm)

Power: 220V 50Hz/3Kw



Product Code: B75LI-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Capacity: 75L(D.400mmx600mm)

Power: 220V 50Hz/4.5Kw



Product Code: B100LI-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Capacity: 100L(D.440mmx650mm)
 Working pressure: 0.14MPa
 Working temperature: 126℃
 Max. safety pressure: 0.165MPa
 Heat average: ≤± 1 ℃

Adjustment of temperature: 105-126℃

Power: 220V 50Hz/4.5Kw





Product Code: B35L-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Whole body inner and outer made by stainless steel

Digital display of working status, touch type key

Auto-letting off the cool air, and steam discharging automatically sfter sterilization
Over temperature & over pressure auto-protection

Safe protection of water lacking

Automatically shut off with beep reminding after sterilization

Easy to operate, safe and reliable

With two stainless steel sterilizing baskets

Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Max. safety pressure: 0.23MPa
 Timer : 0-99 min or0-99hour59min

Heat average: ≤± 1 ℃

Adjustment of temperature: 105-134℃

Power: 220V 50Hz/2.5Kw



Product Code: B50L-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Capacity: 50L(D.340mmx550mm)

Power: 220V 50Hz/3Kw



B75L-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Capacity: 75L(D.400mmx600mm)

Power: 220V 50Hz/4.5Kw



Product Code: B100L-Digital/Vertical Pressure Steam Sterilizer ﹙Digital display automation ﹚

Capacity: 100L(D.440mmx650mm)


Power: 220V 50Hz/4.5Kw

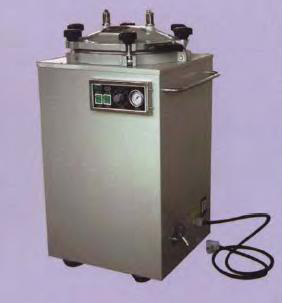

Product Code: C35L/Vertical Pressure Steam Sterilizer

The chamber of the sterilizer is made of stainless steel

Indicator light indicates working state

Double scale indication pressure gauge

Working temperature 126℃

Time scope:0-60min

Automatically shut off with beep reminding after sterilization

Easy to operate, safe and reliable

With two stainless steel sterilizing baskets

Capacity: 35L(D.318mmx450mm)
 Working pressure: 0.14-0.16MPa
 Working temperature: 126℃

 Timer : 0-60 min

Power: 220V 50Hz/2.5Kw





Product Code: C50L/Vertical Pressure Steam Sterilizer

The chamber of the sterilizer is made of stainless steel

Indicator light indicates working state

Double scale indication pressure gauge

Working temperature 126℃

Time scope:0-60min

Automatically shut off with beep reminding after sterilization

Easy to operate, safe and reliable

With two stainless steel sterilizing baskets

Capacity: 50L(D.340mmx550mm)
 Working pressure: 0.14MPa
 Working temperature: 126℃

 Timer : 0-60 min

Temperature scope: 105-126℃

Power: 220V 50Hz/4.5Kw



Horizontal

Product Code: 150YDA/Horizontal cylindrical pressure steam sterilizer

The steam can't go through to chamber when the door haven't close , and the pilot off to inform. You can processing dry operate

When the pressure inner over 0.027Mpa, the door be lock and not be open

If you not choose the sterile time and start machine, buzzer sound

If you mistake open the door in the course of stat, the jacket valve auto off and open the chamber valve

Lack water the pilot on, heating and sterile pilot off, the buzzer sound and auto release steam

Overload and leakage protection, when leakage or over current occur, it auto off the power

Temperature controller not work  and the inner pressure over 0.165Mpa, the safety valve auto start open

Capacity: 150L(D.480mmx850mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Adjustment of temperature: 40-134℃
 Timer : 0-60 min

Time for drying: 0-60min

Heat average: ≤± 2 ℃

Power: 380V 50Hz/6Kw





Product Code: 200YDA/Horizontal cylindrical pressure steam sterilizer

Capacity: 200L(D.515mmx1000mm)


Power: 380V 50Hz/9Kw



Product Code: 280YDA/Horizontal cylindrical pressure steam sterilizer

Capacity: 380L(D.600mmx1000mm)


Power: 380V 50Hz/12Kw

Product Code: 400YDA/Horizontal cylindrical pressure steam sterilizer

Capacity: 400L(D.00mmx1100mm)


Power: 380V 50Hz/18Kw



Product Code: 500YDA/Horizontal cylindrical pressure steam sterilizer



Capacity: 500L(D.700mmx1300mm)


Power: 380V 50Hz/18Kw



Product Code: 150YDBH/orizontal cylindrical pressure steam sterilizer (microcomputer control)



Sterilizing course automatic sterilization controlled by computer, easy to operate.



With drying function, suitable dressing drying.



With over-temperature, over-pressure auto-protect device.



The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn't closed well.



The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.



The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

Capacity: 150L(D.480mmx850mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Adjustment of temperature: 40-134℃
 Timer : 0-99 min

Time for drying: 0-99min

Heat average: ≤± 2 ℃

Power: 380V 50Hz/6Kw



Product Code: 200YDB/Horizontal cylindrical pressure steam sterilizer (microcomputer control)

Capacity: 200L(D.515mmx1000mm)


Power: 380V 50Hz/9Kw



Product Code: 280YDB/Horizontal cylindrical pressure steam sterilizer (microcomputer control)


Capacity: 280L(D.515mmx1000mm)


Power: 380V 50Hz/12Kw








Product Code: 150YDC/Horizontal cylindrical pressure steam sterilizer

The steam can't go through to chamber when the door haven't close , and the pilot off to inform. You can processing dry operate

When the pressure inner over 0.027Mpa, the door be lock and not be open

If you not choose the sterile time and start machine, buzzer sound

If you mistake open the door in the course of stat, the jacket valve auto off and open the chamber valve

Lack water the pilot on, heating and sterile pilot off, the buzzer sound and auto release steam

Overload and leakage protection, when leakage or over current occur, it auto off the power

Temperature controller not work  and the inner pressure over 0.165Mpa, the safety valve auto start open

Capacity: 150L(D.480mmx850mm)
 Working pressure: 0.22MPa
 Working temperature: 134℃
 Adjustment of temperature: 40-134℃
 Timer : 0-60 min

Time for drying: 0-60min

Heat average: ≤± 2 ℃

Power: 380V 50Hz/6Kw



Product Code: 200YDC/Horizontal cylindrical pressure steam sterilizer

Capacity: 200L(D.515mmx1000mm)


Power: 380V 50Hz/9Kw



Product Code: 280YDC/Horizontal cylindrical pressure steam sterilizer



Capacity: 280L(D.600mmx1000mm)


Power: 380V 50Hz/12Kw





Portable Autoclave, Portable Pressure Steam Sterilizer, Autoclave, Steam Autoclave, Sterilizer, Medical Autoclave, Autoclaves, Hospital Autoclave, Small Autoclave, Vertical Autoclave, Dental Autoclave, Table Type Autoclave, Horizontal Autoclave, Big Autoclave, Surgical Autoclave, Medical Sterilizer, Cylindrical Autoclave, Pressure Steam Autoclave, Table Top Steam Sterilizer
